CCRB Coal Feeder
Introduction:
CCRB Coal Feeder is mainly composed of static part and Vibration body. The static part includes inlet, outlet chute, gate, dust sealing, etc. The vibration body includes feed trough, vibration motor, etc.
Advantage:
- Feeding homogeneously, quantitatively and continuously
- Feeding small block, bulk and powder material
- Vibration motor or electromotor driving exciter as vibration source
- Low energy consumption, no pollution
- Small volume, light weight, large quantities of suply
Vibrating Feeder Technical Parameters: | Model | ZG50 | ZG70 | ZG90 | ZG110 | ZG150 | ZG170 | ZG180 |
| Trough Size | L(mm) | 1400 | 1600 | 1800 | 1800 | 1800 | 2200 | 2200 |
| W(mm) | 500 | 700 | 900 | 1100 | 1500 | 1700 | 1800 |
| Feeding Size(mm) | 0-150 | 0-200 | 0-300 | 0-300 | 0-300 | 0-300 | 0-300 |
| Installation Angle(°) | 5-15 | 5-15 | 5-15 | 5-15 | 5-15 | 5-15 | 5-15 |
| Double Amplitude(mm) | 6-12 | 6-12 | 6-12 | 6-12 | 6-10 | 6-10 | 6-10 |
| Capacity(t/h) | 0-50 | 50-80 | 100-200 | 220-450 | 450-900 | 680-1300 | 750-1500 |
| Motor | Model | YZS-10-6 | YZS-15-6 | YZS-20-6 | YZS-30-6 | YZS-50-6 | YZS-50-6 | YZS-50-6 |
| RPM | 960 | 960 | 960 | 960 | 960 | 960 | 960 |
| Power (kw) | 2×0.75 | 2×1.1 | 2×1.5 | 2×2.2 | 2×3.7 | 2×3.7 | 2×3.7 |
Related Products:
Banana Screen&Linear Vibrating Screen
Coal Sizer&Coal Crushing Plant
Apron Feeder Breaker&Scraper Feeder Breaker
Crawler Type Mobile Crushing Plant&Trailer Type Mobile Crushing Plant
Circular Vibrating Screen&Belt Feeder
Portable Jaw Crusher&Impact Crusher
Cone Crusher&Sand Making Machine
Impeller Sand Washer&Spiral Sand Washer
After-sales Service:
Provide professional staff training for customers
1. Service engineer offers spot training and equipment operation manual.
2. After-sales personnel visit customers on a regular basis.
3. Design engineer provides professional service for customers for free.
Company Information:
|
|

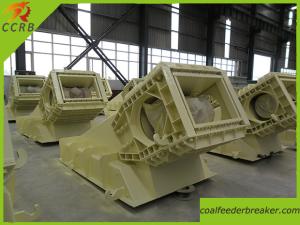

CCRB Coal Feeder Images
|
